Custom NdFeB Magnets with Adhesive Back

Model NO.: CY sintered NdFeB
Quality System: ISO/Ts16949:2009; ISO9001:2000; QS-9000
Certificate: SGS, RoHS, Reach
Working Temperature: 80 to 230 ºC
Factory: Over 20 Years Experiences
Trademark: XILAMA
Transport Package: Antimagnetic Packaging / Neutral Packing
Specification: RoHS, TUV
Origin: Jiangmen, China
HS Code: 85051110
**** Welcome to Jiangmen Magsource New Material Co.,LTD. ****
;jpmfmagnet.com
Specialized in producing magnet materials over 20years
Aims to be the best Neodymium Magnet supplier in China
Offer Super Strong NdFeB Magnet, Professional Service, Customized Welcome!!

NdFeB magnets -The Strongest Permanent Magnets Today
Neodymium-Iron-Boron (NdFeB) magnets are composed of neodymium, iron, boron and a few transition metals. It is used most popular by people in industry and our daily life. These kind of permanent magnets are extremely strong and can be producted in different shapes and sizes (ie. arcs, blocks, discs, rings).

**** Self Adhesive DISC ROUND Neodymium Magnets ****
Size Ø10mm x 1mm for reference:
**** Item specifics ****
Brand: XILAMA
Shape: Disk
Material: Neodymium
Colour: Nickel
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Grade: N35
Diameter: 10mm +/-0.1mm manufacturers tolerance
Thickness: 1mm +/-0.1mm manufacturers tolerance
Direction of Magnetisation: Axial - one flat face north, other south
Adhesive: 3M 467 easy peel paper with tab
Maximum Temp 50C / 120F
Calculated Pull* 1.2lb / 19oz / 547g
WARNING 1: Extremely brittle, fragile, do not flex
WARNING 2: Jumping magnets - break, crack, chip, shatter
WARNING 3: SAFETY LEAFLET inc handling instruction with order


1. Specifications of Sintered Neodymium Magnet

Place of Origin Guangdong, China(Mainland)
Magnet Type Sintered NeFeB / rare earth / Permanent
Composite Neodymium-Iron-Boron
Grade N35-N54( M, H, SH, UH, EH, AH series )
Working Temperature The Max. temp. is up to 80 / 100 /120 /150 / 230 celsius under different grade.
Tolerance +/-0.03 to +/-0.15
Shape of Magnet Disc, Cylinder, Block, Ring, Sphere(ball), Arc Segment(Tile) and more custom shapes
Size various sizes custom-make welcome
Coating Ni, Zn, NiCuNi, gold, silver, copper, epoxy, etc.
Magnetization Direction Axially Magnetized, Radially Magnetized(Diametrically), Multi-poles Magnetized or other customized
Quality System/Certificate ISO/TS16949:2009; ISO9001:2000,QS-9000 SGS,RoHS,REACH
Application Industrial Magnet, Toy Magnet, Health Magnet and more
Packaging Antimagnetic Packaging / Neutral Packing / Custom-make welcome
Shipping Method by see, by air or by int'l express
Lead Time 10~25days


2. Applications of Sintered NdFeB Magnets
The permanent magnets, which are called the next centurial magnets, are used in a wide range of industries including computer, automobile, electric machinary, electro-sound devices, automatic control, magnetic force mechanism, microwave commnication, petrochemical industry, medical apparatus and equipment. The magnets are the ideal materials for the subminiature magnetic devices with high function.NdFeB magnets is especially suitable for developing those new products demanding high quality, small volume and light weight.
· Automotive Starters · Microphone Assemblies
· Computer Rigid Disc Drives · Particle Accelerators
· DC Motors · Printers
· Headphone · Relays
· Halbach Arrays · Servo Motors
· Linear Actuators · Stepper Motors
· Linear Motors · Switches
· Loud Speakers · Undulators
· Magnetic Bearings · Vacuum Deposition
· Magnetic Couplings · Voice Coil Motors (VCM)
· Magnetic Separators · Wind Turbines

3. Technical Data of Sintered NdFeB Magnets
MAGNETIC AND PHYSICAL CHARACTERISTICS
Series Grade Remanence Coercive Force Intrinsic Coercive force Max. Energy Product Max. Working Temp.
Br Hcb Hci (BH) max L/D=0.7
T kGs KA/m KOe KA/m KOe KJ/m3 MGOe ºC °F
N N35 1.17-1.24 11.7-12.4 ≥860 ≥10.8 ≥955 ≥12 263-295 33-37 80 176
N38 1.22-1.30 12.2-13.0 ≥860 ≥10.8 ≥955 ≥12 287-318 36-40 80 176
N40 1.26-1.32 12.6-13.2 ≥860 ≥10.8 ≥955 ≥12 302-334 38-42 80 176
N42 1.29-1.35 12.9-13.5 ≥860 ≥10.8 ≥955 ≥12 318-350 40-44 80 176
N45 1.32-1.38 13.2-13.8 ≥860 ≥10.8 ≥955 ≥12 334-366 42-46 80 176
N48 1.37-1.43 13.7-14.3 ≥836 ≥10.5 ≥876 ≥11 358-390 45-49 80 176
N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 374-406 47-51 80 176
N52 1.42-1.48 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 390-422 49-53 80 176
N54 1.45-1.51 14.5-15.1 ≥836 ≥10.5 ≥876 ≥11 398-438 50-55 80 176
M N35M 1.17-1.24 11.7-12.4 ≥860 ≥10.8 ≥1114 ≥14 263-295 33-37 100 212
N38M 1.22-1.30 12.2-13.0 ≥915 ≥11.5 ≥1114 ≥14 287-318 36-40 100 212
N40M 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1114 ≥14 302-334 38-42 100 212
N42M 1.29-1.35 12.9-13.5 ≥955 ≥12.0 ≥1114 ≥14 318-350 40-44 100 212
N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 100 212
N48M 1.37-1.43 13.7-14.3 ≥1019 ≥12.8 ≥1114 ≥14 358-390 45-49 100 212
N50M 1.40-1.45 14.0-14.5 ≥1043 ≥13.1 ≥1114 ≥14 374-406 47-51 100 212
N52M 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1114 ≥14 390-422 49-53 100 212
H N35H 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1350 ≥17 263-295 33-37 120 248
N38H 1.22-1.30 12.2-13.0 ≥915 ≥11.5 ≥1350 ≥17 287-318 36-40 120 248
N40H 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1350 ≥17 302-334 38-42 120 248
N42H 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1350 ≥17 318-350 40-44 120 248
N45H 1.31-1.37 13.1-13.7 ≥979 ≥12.3 ≥1350 ≥17 335-366 42-46 120 248
N48H 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1274 ≥16 358-390 45-49 120 248
N50H 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1274 ≥16 374-406 47-51 120 248
SH N33SH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1592 ≥20 247-279 31-35 150 302
N35SH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1592 ≥20 263-295 33-37 150 302
N38SH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥1592 ≥20 287-318 36-40 150 302
N40SH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1592 ≥20 302-334 38-42 150 302
N42SH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1592 ≥20 318-350 40-44 150 302
N45SH 1.32-1.38 13.2-13.8 ≥994 ≥12.5 ≥1592 ≥20 335-366 42-46 150 302
UH N30UH 1.08-1.16 10.8-11.6 ≥812 ≥10.2 ≥1990 ≥25 223-255 28-32 180 356
N33UH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1990 ≥25 247-279 31-35 180 356
N35UH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1990 ≥25 263-295 33-37 180 356
N38UH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥1990 ≥25 287-318 36-40 180 356
N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 302-334 38-42 180 356
N42UH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1990 ≥25 318-350 40-44 180 356
EH N30EH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2388 ≥30 223-255 28-32 200 392
N33EH 1.14-1.21 11.4-12.1 ≥851 ≥10.7 ≥2388 ≥30 247-279 31-35 200 392
N35EH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥2388 ≥30 263-295 33-37 200 392
N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 200 292
AH N28AH 1.04-1.12 10.4-11.2 ≥772 ≥9.70 ≥2786 ≥35 207-239 26-30 230 446
N30AH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2786 ≥35 223-255 28-32 230 446
N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 230 446


FAQ
1. Q: Which is the strongest type of magnet?
    A: Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.

2. Q: What are the size limitations on manufacturing neodymium magnets?
   A: The limits include:
        2" max in magnetized direction
        4" max diameter for discs and rings
        4" max length and width for blocks
        1/32" minimum on thickness on any magnet
        1/16" minimum diameter on outer diameter
        1/16" minimum diameter on any hole

3. Q: What information do I need to supply when I have an inquiry?
    A: If you have any inquiry, please kindly advise the following items:
         Dimensions, sizes, shape and drawing with tolerances.
         Material grade or magnetic properties.
         Magnetic direction, quantity. Surface coating (if necessary).
         Any special packing, delivering or other requirements.

4. Q: What about the sample time and charge?
    A: 7-10 days if the sample have to be customized, charge according to your design.
         3-7 days for our existing samples for reference

5. Q: What about the delivery time of your products?
    A: 10-15days.
         Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.

6. Q: Could you provide me the shortest lead time?
    A: That's based on whether we have the available materials in stock, we will try our best to satisfy you if any urgency.

7. Q: What is your MOQ?
    A:-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.

8. Q: How to pay you?
    A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
          Western Union cash - for small order or samples order.
          Other payment: Paypal.
          Different areas may exist some differences.

9. Q: Could I pay a visit to your factory?
    A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.

10. Q: Where is your plants?
     A: Our plant located in No.120 Gaoxin West Road, Jianghai District, Jiangmen City, Guangdong Province, China. About 60 minutes from Guangzhou Airport by car.

11. Q: If I have more questions, where can I get the answer?
     A: Any issue, please feel free to contact us any time.
           Tel:/
           Fax: 0086


Finally---Why you choose us?

1. Magsource qualified by ISO/TS 16949, ISO14001, RoHS, SGS, REACH.
2. 8 years export experiences makes us well know how to satisfy you.
3. The best quality with reasonable price.
4. Fast and on-time delivery.


1. Molded with UV Protected polyresin for the plastic Fence Post.

2. 8 Wire holders for Steel Wire, poly wire or poly type.

3. 9" sharp metal spike at base of post for easy install (minimum of 2'' molded into resin post). Bottom of spike to be capped for safety.

4. Minimum on 1-1/2'' lip for step in install located at top of metal spike.

5. 48" total length for the step in post-polyresin structure 41'' long x 1'' x 1'' plus wire holders.

6. Weight/pc for the step in post: 0.35kgs/pc.

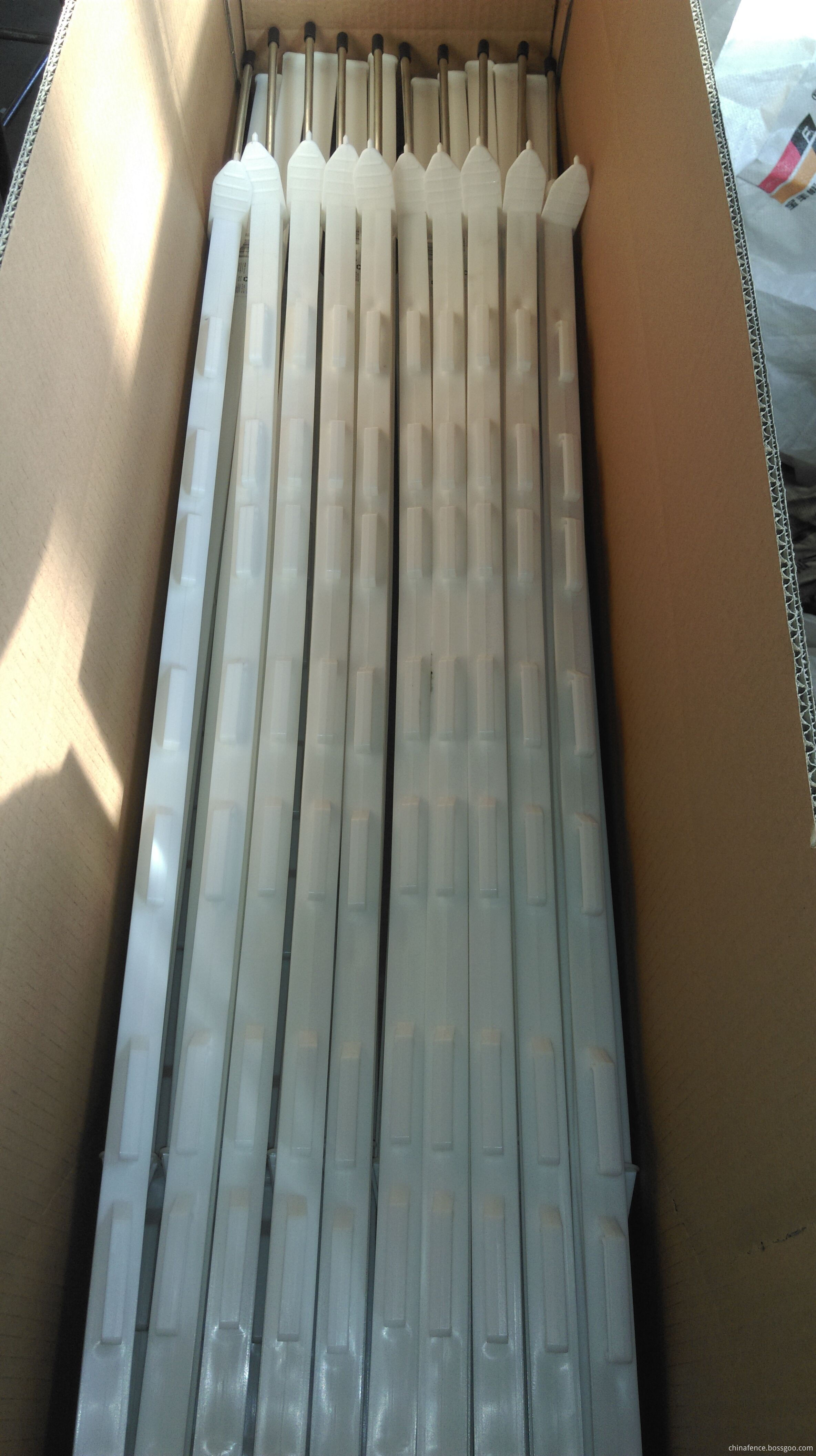

7. Packing for plastic fence post:  50pcs/carton, carton size: 1.23M x 0.30M x 0.26M  (length x width x height).

step in post


Step-In Poly Fence Post

Step-In Poly Fence Post,Galvanized Step-In Poly Fence Post,Cheap Step-In Poly Fence Post,Black Step-In Poly Fence Post
