Hand Held Metal Detector-Metal Detector-Needle Detector-Industrial Metal Detector-Metal Detectors-Sercurity Instrument-Security Detector-Super Scanner-Detector

Specifications
Handheld metal detector
1. Professional factory
2. Vibration/sound mode with light alarm
3. Easy to use
4. High sensitivity
Hand-held metal detector GP008

Schematic View:
1. LED(Green for power, yellow for under voltage and red for alarm)
2. Handoff Switch (audio, light, vibration)
3. Battery Lid
4. Sensitivity adjuster
5. A buzzer
6. Detection Face
7. Rechargeable Battery Socket

Applications:
1. Electronic detection inspection at airports, railway stations and wharfs;
2. Security inspection of customs, public securities, frontier defense and safeguard authorities;
3. Quality inspection of medicine and food commercial systems;
4. Security inspection of important sites and playgrounds;
5. Noble metal detection, such as gold or silver jewelry manufacturing plants.

Detection distance:
1. Pin 35-65mm;
2.64 model handgun 160mm;
3.6 inch long knife 170mm
4. Diameter 30mm
5. Steel ball 100mm

Method to use:

1. Turn on the power switch (2). If a click sound is heard, it indicates that the power has been connected, and the green LED will turn on at the same time. If no click sound is heard, it indicates that no battery has been installed or the battery is not well connected. If the click sound is heard one after another it indicates that the battery cannot be used any more and a new battery shall be installed

2. When the switch-on click sound stops, the highly sensitive detection can be performed. Grasp the handle and detect wich the detection face around the object being detected, there will an alarm when a metal object is detected. In the mean time, the green LED will turn into red. When the detection stops, the alarm stops and the red LED turns into green

Features:
1. Highly sensitive.
2. Simple and convenient to use, no adjustment is required;
3. The detection distance will not be changed when the battery voltage drops from 9V to abou t 7V
4. Low power consumption, can work for 40 hours continuously
5. There is automatic and continues alarm when the battery is used up
6. Switch on /off audio prompt function
7. With external rechargeable socket hole
8. Has audio, light and vibration handoff switch

Sensitivity Adjustment:

1. The sensitivity shall be adjusted when performance instability is observed or sound is produced when detecting human body without any metal stuff because the detection distance is less than the stipulated requirement or the sensitivity is too high

2. Insert a small straight-shaped screwdriver into the small hole of the handle of the detector and rotate clockwise, until a sound is head, then rotate counter-clockwise barely to the position where no sound is produced, then rotate for another half a circle, until the sensitivity meets the requirement Specifications
Handheld metal detector
1. Professional factory
2. Vibration/sound mode with light alarm
3. Easy to use
4. High sensitivity
Hand-held metal detector GP008

Schematic View:
1. LED(Green for power, yellow for under voltage and red for alarm)
2. Handoff Switch (audio, light, vibration)
3. Battery Lid
4. Sensitivity adjuster
5. A buzzer
6. Detection Face
7. Rechargeable Battery Socket

Applications:
1. Electronic detection inspection at airports, railway stations and wharfs;
2. Security inspection of customs, public securities, frontier defense and safeguard authorities;
3. Quality inspection of medicine and food commercial systems;
4. Security inspection of important sites and playgrounds;
5. Noble metal detection, such as gold or silver jewelry manufacturing plants.

Detection distance:
1. Pin 35-65mm;
2.64 model handgun 160mm;
3.6 inch long knife 170mm
4. Diameter 30mm
5. Steel ball 100mm

Method to use:

1. Turn on the power switch (2). If a click sound is heard, it indicates that the power has been connected, and the green LED will turn on at the same time. If no click sound is heard, it indicates that no battery has been installed or the battery is not well connected. If the click sound is heard one after another it indicates that the battery cannot be used any more and a new battery shall be installed

2. When the switch-on click sound stops, the highly sensitive detection can be performed. Grasp the handle and detect wich the detection face around the object being detected, there will an alarm when a metal object is detected. In the mean time, the green LED will turn into red. When the detection stops, the alarm stops and the red LED turns into green

Features:
1. Highly sensitive.
2. Simple and convenient to use, no adjustment is required;
3. The detection distance will not be changed when the battery voltage drops from 9V to abou t 7V
4. Low power consumption, can work for 40 hours continuously
5. There is automatic and continues alarm when the battery is used up
6. Switch on /off audio prompt function
7. With external rechargeable socket hole
8. Has audio, light and vibration handoff switch

Sensitivity Adjustment:

1. The sensitivity shall be adjusted when performance instability is observed or sound is produced when detecting human body without any metal stuff because the detection distance is less than the stipulated requirement or the sensitivity is too high

2. Insert a small straight-shaped screwdriver into the small hole of the handle of the detector and rotate clockwise, until a sound is head, then rotate counter-clockwise barely to the position where no sound is produced, then rotate for another half a circle, until the sensitivity meets the requirement

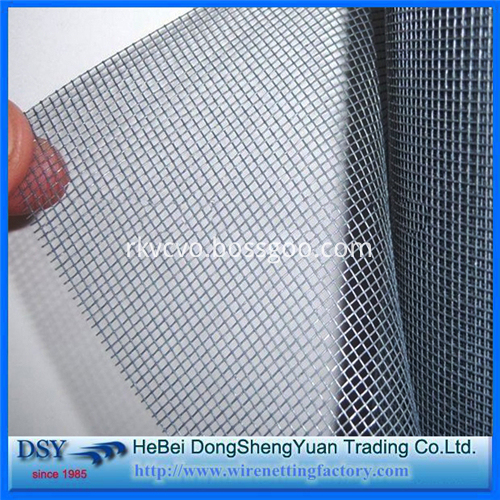

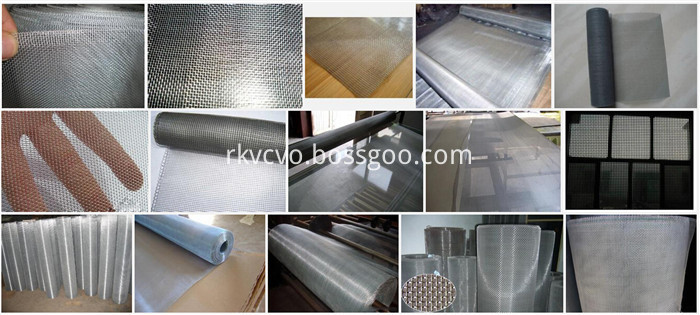

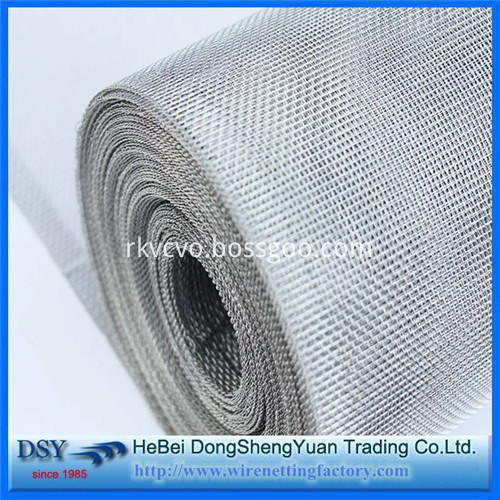

Aluminum Wire Netting, a Woven Wire Mesh, is woven from aluminum wire or aluminum-magnesium alloy wire with square opening mesh. So, aluminum insect screen is also called magnalium wire screen. Its natural color is silver white. And our aluminum window screen can be coated with epoxy coating to green, silver gray, yellow and blue, or with charcoal coated in black color.

Material: Epoxy coated aluminum alloy wire, magaluma wire.
Aluminum type :1070,1100,1350,1370,4043,4047,5056,5052,5154,535etc.
The product is in silver color, anti alkali, suitable in the moist place.

Width: 0.6M,0.8m,1.0m,1.2m,1.5m,1.8m etc.
Wire diameters: 0.15-0.4mm, commons: 0.2-0.25mm
Mesh: 14 x14,16x16,16x18,18 x14,18 x18

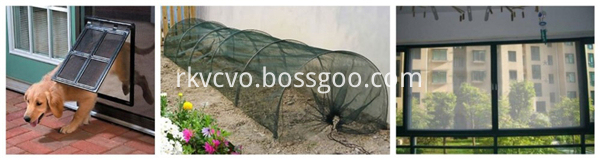

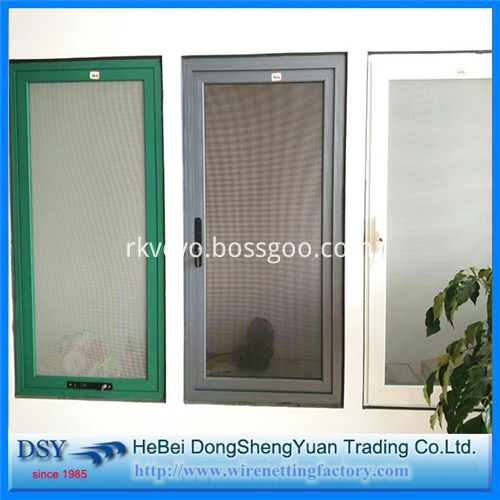

Features: super anti rust Light, nonmagnetic, bright and artistic, mainly used for decoration, window screening, and other usage in industry and civil
